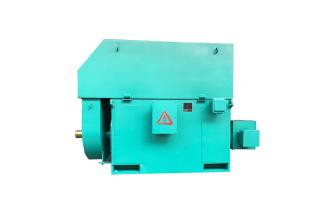

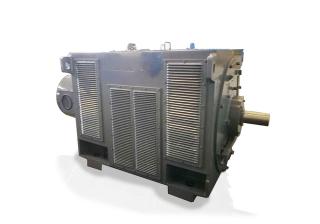

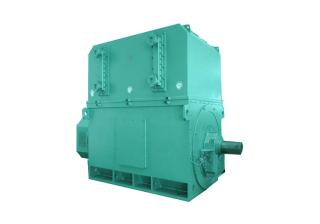

YRKK series of high voltage slip ring three phase induction motor are the product produced by our factory for many years , the structure is reasonable and the technology is advanced , and it has the advantage of high efficiency , energy saving , low noise , low vibration , reliable operation , convenient installation and maintenance .

The motor adopts box type structure , the frame is welded with steel plate , it has light weight , strong rigidity . the enclosed air-to-air cooler is installed on the top of the motor , which is convenient for disassembly and assembly , and it is convenient for installation and maintenance . The stator adopts press-fit structure , the stator winding adopts F insulation material , the end has reliable fixed binding . It passed many times interturn pulse voltage experiment and ground pressure resistance experiment during the manufacturing process , and it adopts foreign advance vacuum pressure impregnation solvent-free paint technology (VPI) process , therefore , the motor has excellent and reliable insulation performance , good mechanical strength , strong moisture resistance . The winding rotor are made of pure copper-bar , and use F insulation material . there are two types of rolling bearing and sliding bearing , which depends on the motor power and rotation speed .

The power level , installation dimension , electrical performance are in accordance with GB755-2000((rotated motor rating and performance )) , mechanical industry standard GB/T10315.2 and relevant standard IEC60034-1 . At present , the product has low energy consumption , reliable operation , which has been widely recognized by customers in market .

The slip ring motor are widely used in steel plant , metallurgy , cement plant , petroleum , chemical industry , water conservancy , paper making plant , sugar making plant , city water supply pollution discharge and other relevant enterprises , and it is used as prime motor to drive various heavy-duty mechanical equipment , such as metal cutter , crusher , ball mill , compressor , sugar mill , winch , conveyor , and etc.,

Power : 160kW～12000KW

Voltage : 3KV-13.8KV

Rated frequency ： 50HZ , 60HZ

Pole ：2P～16P

Protection class ：IP44， IP54，IP55

Cooling type ： IC611 , IC616 , IC666

Insulation class : F

Temp. rise ：B

Ambient temp. ：-15℃～+40℃

Altitude ：No more than 1000M

Service factor ：1.0

Working duty ：S1

Mounting type ：IMB3 horizontal foot mounted , IMB35 horizontal foot and flange mounted , IMV1 vertical flange mounted .
