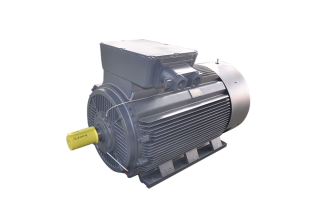

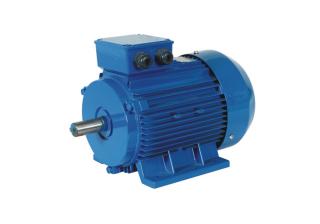

YE3 series is a fully enclosed fan cooled type squirrel cage rotor three phase induction motor newly developed by our company in accordance with GB/T28575-2012 , the efficiency of this series of motors have reached to the efficiency grade 2 in china GB18613-2012((small and medium three phase induction motor efficiency value and efficiency level )) , and meet the efficiency grade IE2 of standard IEC60034-30 , and it is same level as the American NEMA super-efficient motor .

Compare with YE2 series , YE3 series of supper-efficient are more energy-saving , low carbon , and environmental friendly .The installation dimension , power level are same as the general motor , comply with the international electrotechnical commission standard IEC60072-1 , replace directly to achieve the purpose of energy-saving and power-saving , which is convenient for market promotion . The frame 160 and above can be equipped with non-stop oil injection and drainage devices , and reserved space for installing thermistor and moisture-proof heating belt , which is convenient for user to choose .

The motor are widely used in steel, metallurgy, electric power, cement plant , petroleum, chemical, water conservancy, paper making plant , sugar making plant , city water supply pollution discharge and other related enterprises as prime motor to drive various machinery, such as ventilator, induced draft fan, blower, feedwater pump, sewage pump, reducer, compressor, coal mill, rolling mill, hoist, shear, crusher, mixer, stock-removing machine , transportation machine and other equipment .

Power : 0.75kW～375KW

Voltage : 380V，400V , 415V ，460V or other voltage

Rated efficiency ： 50HZ

Pole  ：2P～10P

Protection class ： IP54，IP55

Cooling type ： IC411 ，IC416

Insulation class : F

Temp. rise ：B

Temp. rise ：-15℃～+40℃

Altitude ：no more than 1000M

Service factor ：1.0

Working duty ：S1

Mounting type ：IMB3 horizontal foot mounted , IMB5 horizontal flange mounted ，IMB35 horizontal foot and flange mounted , IMV1 vertical flange mounted .
