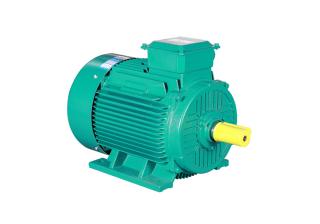

Y2 series of low voltage big power squirrel cage three phase induction motor is a product made by our company which absorbs the advantage of similar motors at home and abroad , and adopts new material and new technology . It achieve the power level that can be only achieved under high voltage before . This series of motors have the advantage of beautiful appearance design , high performance index , strong reliability , small volume , light weight , low vibration , low noise , high efficiency energy saving , and etc.,

The performance , mounting dimension , and power level of this series of motors are in accordance with IEC72 , GB755 , JB/T10444 , and relevant professional technology standard .

This series of motors can drive outdoor(w) , Humid tropical zone (TH) , Outdoor humid tropical zone (WTH) , Anti-corrosive type (F1 , F2 , WF1 , WF2 )， the performance index , mounting and appearance are same as the basic series .

The motor are used to drive various general machines such as compressor , water pump , crusher , stock-removing machine , transportation machine and other machine equipment , and it is used as prime motor in coal mine , mechanical engineering , metallurgy , petroleum , chemical industry , power plant , and various industrial and mining industries .

Power  : 255kW～1500KW

Voltage : 380V，400V , 415V ，460V or other voltage

Rated frequency ： 50HZ

Pole  ：2P～12P

Protection class ： IP54，IP55

Cooling type ： IC411 , IC416

Insulation : F

Temp. rise ：B

Ambient temp. ：-15℃～+40℃

Altitude ：No more than 1000M

Service factor ：1.0

Working duty ：S1

Mounting type ：IMB3 horizontal foot mounted , IMB5 horizontal flange mounted , IMB35 horizontal foot and flange mounted , IMV1 vertical flange mounted .
