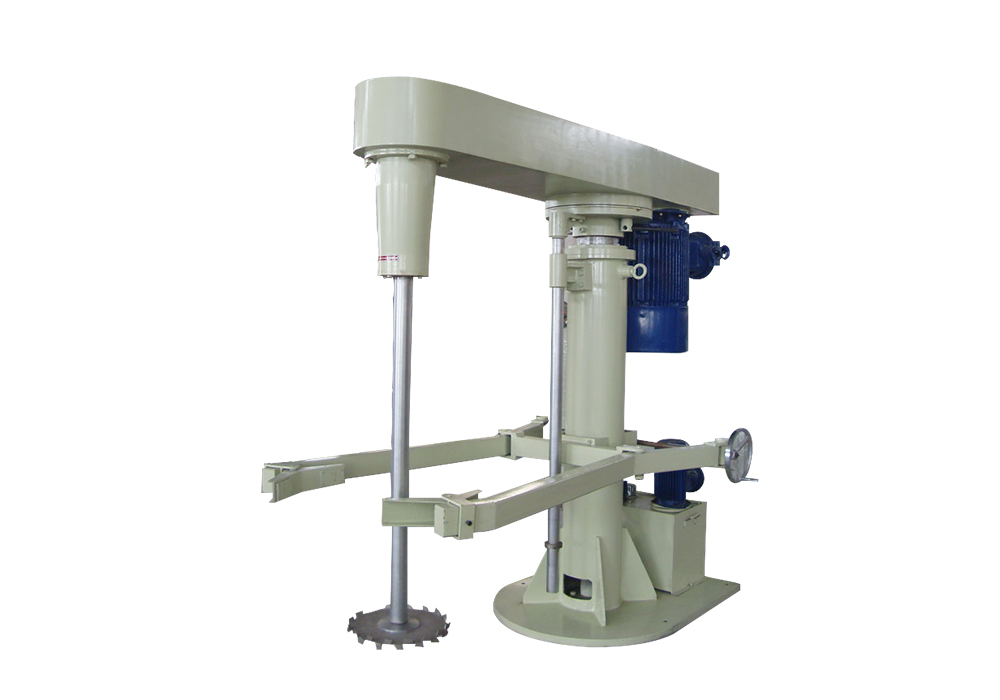

Floor stand disperser
The series of JDG high speed mixers are suitable for pro-ducing paint, ink, coating, dyestuff, paper making and so on in chemical industry. The mixers are used for wet dispersing and mixing liquid-solid material.Non-grade speed adjustment by frequency converters, hydraulic elevating, working steadily, use and maintenance expediently.
features
Floor-mounted dissolver
Use of moveable mixing containers
Production of medium to high-viscous products
Batch sizes of 30 to 5000 litres
Driving power from 1.1 to 160 kW
Drive by modern frequency converter technology or mechanical pulley-drive system
Height-adjustable toothed disc
Suitable and developed for the use in a highly-concentrated initial dispersion quantity (mill charge)
Options
ATEX according to protecttive system Ex II 2 G c IIB T3
Mixing container in mild steel and stainless steel
Double dispersing disc
Vacuum execution
Container wall scraper (rotating)
Platform balance
Cover systems
Temperature measurement and control
Recipe controlled semi and fully automatic PLC control
Applications
Paints, coatings, plasters
Printing inks
Pigment pastes
Adhesives
Fillers
Sealants
PVC-pastes / floor coverings
Casting compounds
Composite materials
Cosmetic products
Technical specs
Technical specification
|
Type/Parameter |
Power |
Speed |
Disc diameter |
Lifting height |
Pump power |
Handling capacity |
Weight |
Overall size |
||
|
L |
W |
H |
||||||||
|
JDG1.5/2.2 |
1.5/2.2 |
0～1450 |
150 |
600 |
0.55 |
50～100 |
120 |
940 |
350 |
1400 |
|
JDG4/5.5 |
4/5.5 |
0～1450 |
200 |
800 |
0.55 |
100～200 |
400 |
1300 |
600 |
1700 |
|
JDG7.5/11 |
7.5/11 |
0～1450 |
250 |
900 |
0.55 |
400～600 |
800 |
1800 |
900 |
1750 |
|
JDG22/30 |
22/30 |
0～1450 |
350 |
1200 |
0.75 |
600～1200 |
1500 |
2100 |
900 |
2200 |
|
JDG37/45 |
37/45 |
0～1200 |
400/450 |
1300 |
1.1 |
1200～2000 |
2000 |
2300 |
1000 |
2250 |
|
JDG55/75 |
55/75 |
0～1200 |
500/550 |
1600 |
1.5 |
2000～3000 |
2500 |
2500 |
1200 |
2500 |
