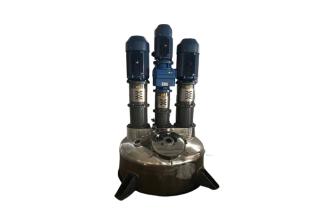

viscous paste mixer -JDL
viscous paste mixer -JDL
Suitable for mixing, dispersing and evacuating of ultra high-viscous and thixotrope products
Floor installation
Vacuum execution for all machine sizes
Use of moveable mixing containers
Batch sizes of 200 up to maximum 1500 litres
Drive by modern frequency converter
Height-adjustable stirring / mixing tools
* Machine also available in single shaft execution without dissolver shaft
Options
ATEX according to protecttive system Ex II 2 G c IIB T3
Stainless steel mixing containers
Double dispersing disc
Mixing shaft scraper
Vacuum design
Platform balance
Temperature measurement
Recipe controlled semi and fully automatic PLC control
With extruder/screw pump to discharge the product
Applications
Wall putty
Printing inks
Polyester putty
Sealants
Adhesives
PU casting compound
Silicone products
High-viscous systems based on PU / epoxy / polysulfide
|
Parameter /Type |
JDL-600 |
JDL-900 |
JDL-1000 |
JDL-1200 |
|
Tank capacity (L) |
150 |
500 |
600 |
900 |
|
High speed power (Kw) |
7.5～11 |
18.5～22 |
22～37 |
30～55 |
|
Low speed powe (Kw) |
4～4.5 |
7.5～15 |
11～30 |
11～37 |
|
High speed blade diameter (mm) |
200 |
250 |
280 |
330 |
|
Low speed shaft Mixing device diamete (mm) |
570 |
860 |
960 |
1160 |
|
High speed shaft (rpm) |
1500 |
1500 |
1500 |
1500 |
|
Low speed shaft ( rpm) |
90～120 |
60～120 |
120 |
120 |
|
Max.range of up and down (mm) |
700 |
950 |
1000 |
1100 |
|
L×W×H (mm) |
1750×1250×2350 |
2420×1400×3106 |
2800×1700×3250 |
2800×1700×3250 |
